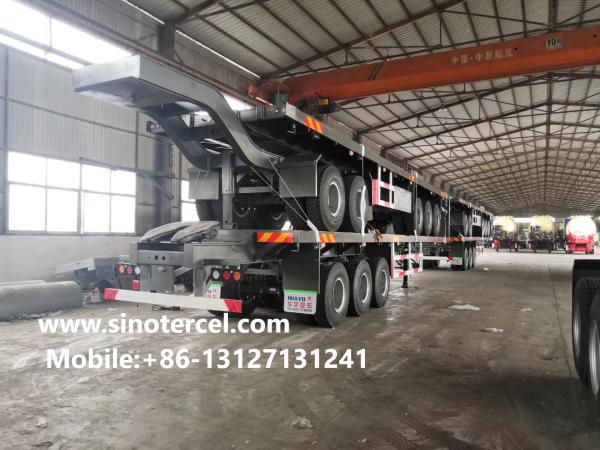

30 Foot Flat Bed Semi Trailer 3 Axle Semi Truck Flatbed Trailer
Product Description:
Sinotruk 40-foot container flat semi-trailer, 2-axle or 3-axle, 40-70 tons
We produce 20-foot or 40-foot standard containers and truck chassis. It can carry all kinds of special goods, especially suitable for the logistics industry. Our semi-trailer series is applicable to all kinds of transportation machinery and equipment, large size goods, road construction equipment, large size tanks, power station equipment and all kinds of steel. The whole vehicle adopts advanced computer-aided design, which is flexible and diverse, and meets the transportation requirements of various special goods based on the design bearing level.
Product Details:
| Product Name: | Flat-bed Semi Trailer Truck | Model: | 3 Axles 35-50Tons |
| Fifth Wheel: | #50, #90 | Loading Capacity: | 35-50tons |
| Dimension Of Flat: | 13000*3000mm | Axles: | 3X16 Tons |
| Material: | Carbon Steel Or Mn Steel | Landing Gear: | 28T JOST |
Parameter:
| SINOTRUK 40feet Container Flatbed Semi Trailer Truck 2 or 3 Axles 40-70 Tons |
| Model | 3 Axles 50Tons |
| Axle | FUWA brand, 16ton, 2 Sets |
| Main beam | Beam height: 500mm Upper plate: 10mm Double Middle plate: 6 mm Down plate: 12mm |
| Dimension of Flat | 13000*3000*6mm |
| Material | Carbon steel or Mn steel |
| Gross vehicle weight | 70000kgs |
| King pin | #90 |
| Support leg | JOST Standard 28T |
| Suspension | Normal suspension |
| Thickness leaf spring | 10/10/10 |
| Tire/Rim | 1200R20, 13pcs, 8.5, 12 pcs |
| Brake Chamber | Standard 6 pcs |
| Spare wheel carrier | 2 pcs |
| Tool box | 1 pcs |
| Electrical System | Chinese standard 24C lighting system |
| Side Maker Lamp | LED lamp |
| Painting | Polyurethane Paint |
| Overall dimension | 16000×2500×3880(mm) |
| Color | White, red, green, golden and so on. |
